Need more technical specs? Select your Dumper size below...

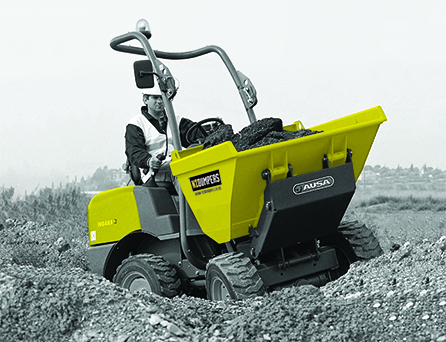

1 Tonne Swivel Dumper

Great for.... Restricted access and footpath access works, landscaping, small earthworks project
Suitable to work with 1t-3t excavator
PERFORMANCE
Payload
1000kg
Unladen weight
1300kg
Skip capacity

- Struck
395 ltr
- Heaped
505 ltr
Dimensions

Width
1.2m
Length
3.2m
Height
2.86m
Other

Gradeability
38%
Tyre Size
11.0/65x12
Max travel speed
15 kph
Turning radius
5.55m
Ground clearance
274mm

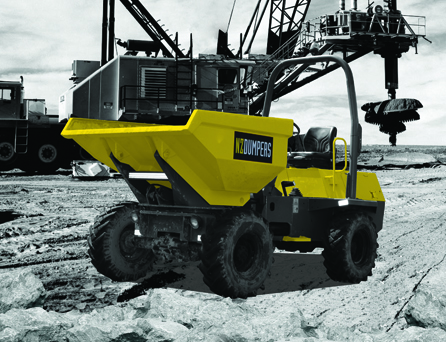

3 Tonne Swivel Dumper

Great for.... small scale civil earthworks, commercial buildings
Suitable to work with 3t - 8t excavators
PERFORMANCE
Payload
3000 kg
Unladen weight
2160 kg
Skip capacity

- Struck
1210 ltr
- Heaped
1640 ltr
Dimensions

Width
1.65m
Length
4.1m
Height
3.1m
Other

Gradeability
25%
Tyre Size
295/80x15.3
Max travel speed
19.8 kph
Turning raduis
9.2m
Ground clearance
330mm

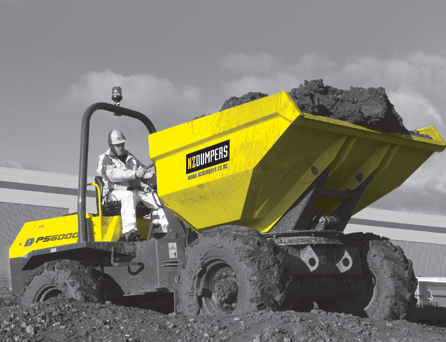

6 Tonne Swivel Dumper

Great for.... Civil Earthworks, Drainage
Suitable to work with 5t-12t excavators
PERFORMANCE
Payload
6000 kg
Unladen weight
4280 kg
Skip capacity

- Struck
2550 ltr
- Heaped
3150 ltr
Dimensions

Width
2.24m
Length
4.78m
Height
3.3m
Other

Gradeability
X%
Tyre Size
405/70 x 20
Max travel speed - kph
27.7
Turning raduis
12m
Ground clearance
370mm

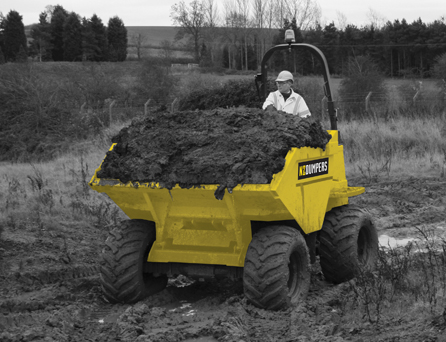

9 Tonne Swivel Dumper

Great for.... Bulk earthmoving working with the ability to directionally tip
Suitable for working with 12t - 20t excavators
PERFORMANCE
Payload
9000 kg
Unladen weight
5360 kg
Skip capacity

- Struck
3400 ltr
- Heaped
4250 ltr
Dimensions

Width
2.44m
Length
5m
Height
3.415m
Other

Gradeability
X%
Tyre Size
500/60 x 22.5
Max travel speed - kph
30.1
Turning raduis
13.4m
Ground clearance
447mm

9 Tonne Straight Tip Dumper

Great for.... Bulk earthmoving
Suitable for working with 12t-20t excavators
PERFORMANCE
Payload
9000 kg
Unladen weight
4650 kg
Skip capacity

- Struck
3830 ltr
- Heaped
4600 ltr
Dimensions

Width
2.44m
Length
4.635m
Height
3.335m
Other

Gradeability
X%
Tyre Size
500/60 x 22.5
Max travel speed - kph
30.1
Turning raduis
14m
Ground clearance
447mm

10 Tonne Swivel Dumper

Great for.... Bulk earthmoving
Suitable for working with 12t-20t excavators
PERFORMANCE
Payload
10000 kg
Unladen weight
4710 kg
Skip capacity

- Struck
4110 ltr
- Heaped
4700 ltr
Dimensions

Width
2.44m
Length
4.65m
Height
3.415m
Other

Gradeability
X%
Tyre Size
500/60 x 22.5
Max travel speed - kph
30.1
Turning raduis
14m
Ground clearance
447mm
